Description

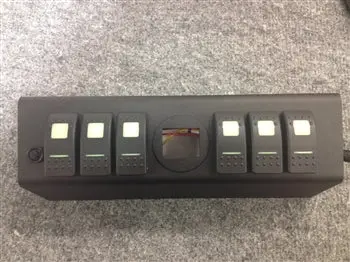

JK 6 Switch Panel with dual lit LED Amber switches for 2009-2018 JK Wranglers W/Genesis Adapter G Screen not included. This panel includes the new Genesis adapter to allow you to install the Genesis G Screen.
Each system includes the following:
- All required mounting brackets and hardware.
- System will come pre-wired ready to install.
- G Screen not included.
Included:
- Switch panel, dual lit LED Amber switches.
- All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
- The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from field collapse
- Inline 50 amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
- Fuse for LVCO which can be removed to bypass the LVCO
- Mounting bracket for Jeep Wranglers
