Mega Pacman High-Capacity Fuel Sump Tank

Description

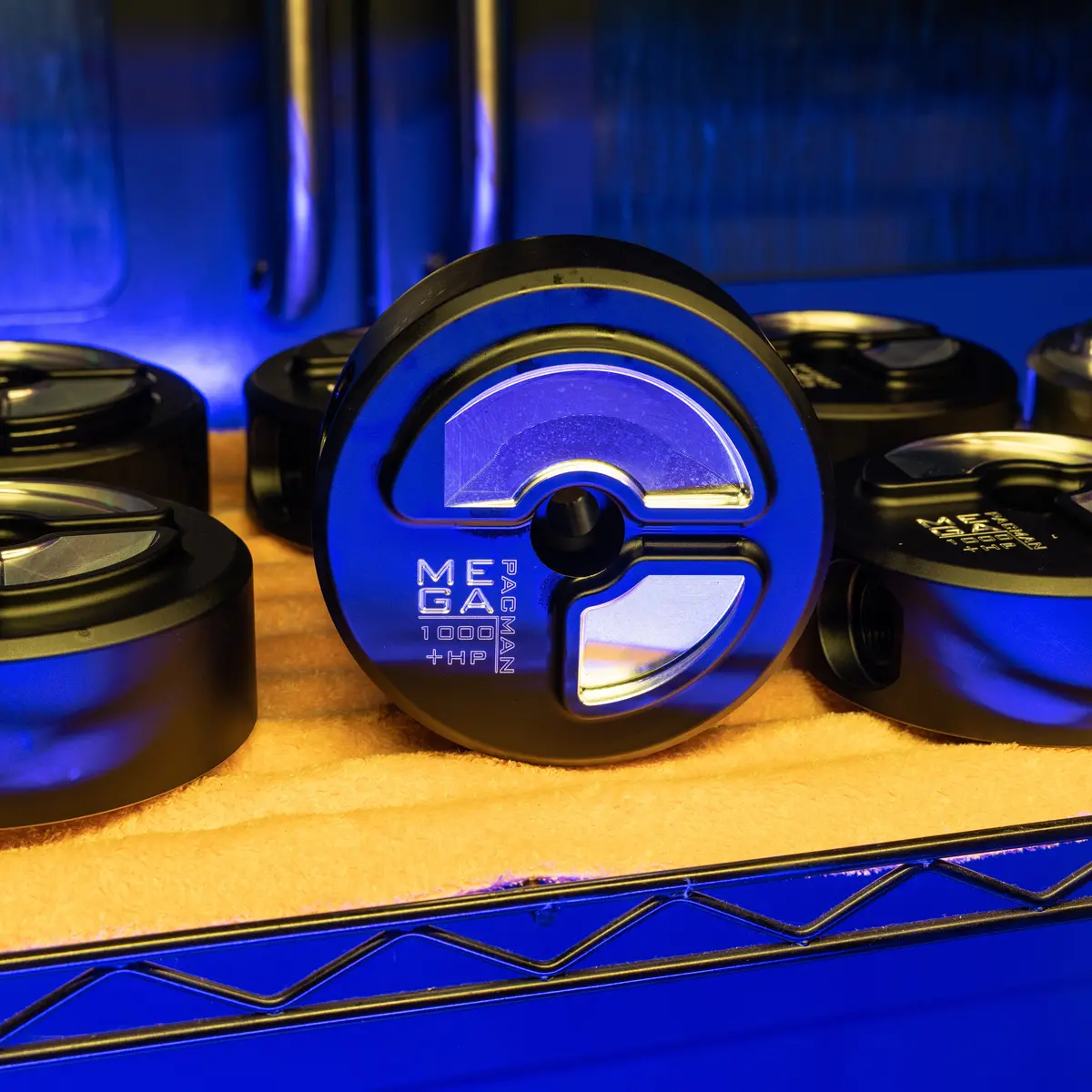

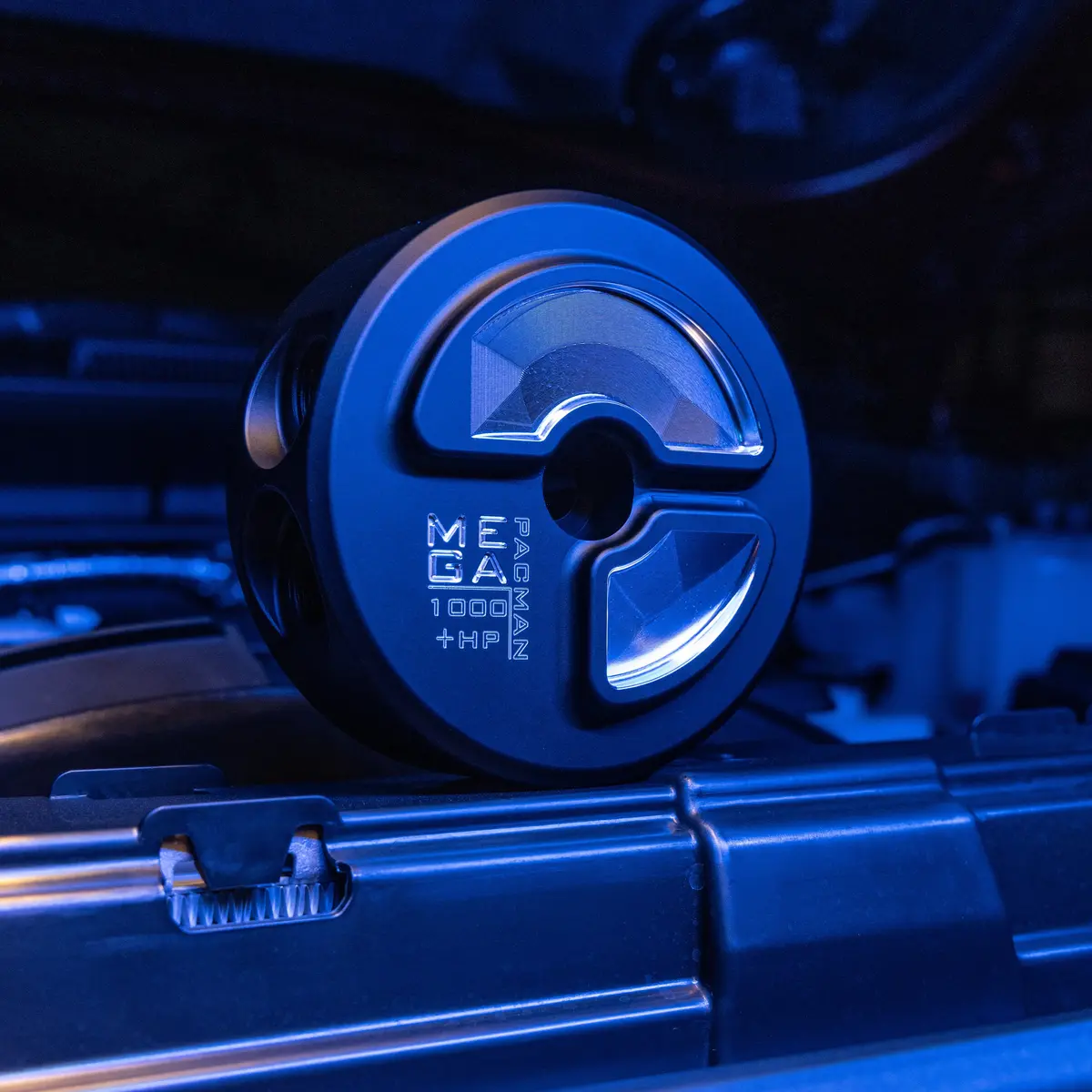

“MEGA PACMAN” BILLET FUEL SUMP

HP RATING STOCK TO 1200HP ON 1/2 HOSE

PATENT PENDING BILLET TOP PLATE ” DELETES STANDPIPE RETURN”

O-RINGED RETURN PORT

REDUCES RETURN FUEL PRESSURE

ELIMINATES AERATION FROM THE RETURNED FUEL INTO SUCTION BOWL

REDUCES FUEL PUMP “MARBLES IN A CAN NOISE”

ALLOWS FOR ACCURATE FEED PSI WITH LOWER RETURN PSI

PREVENTS FUEL PUMP OVERHEAT FAILURES DUE TO “RESTRICTED RETURNS”

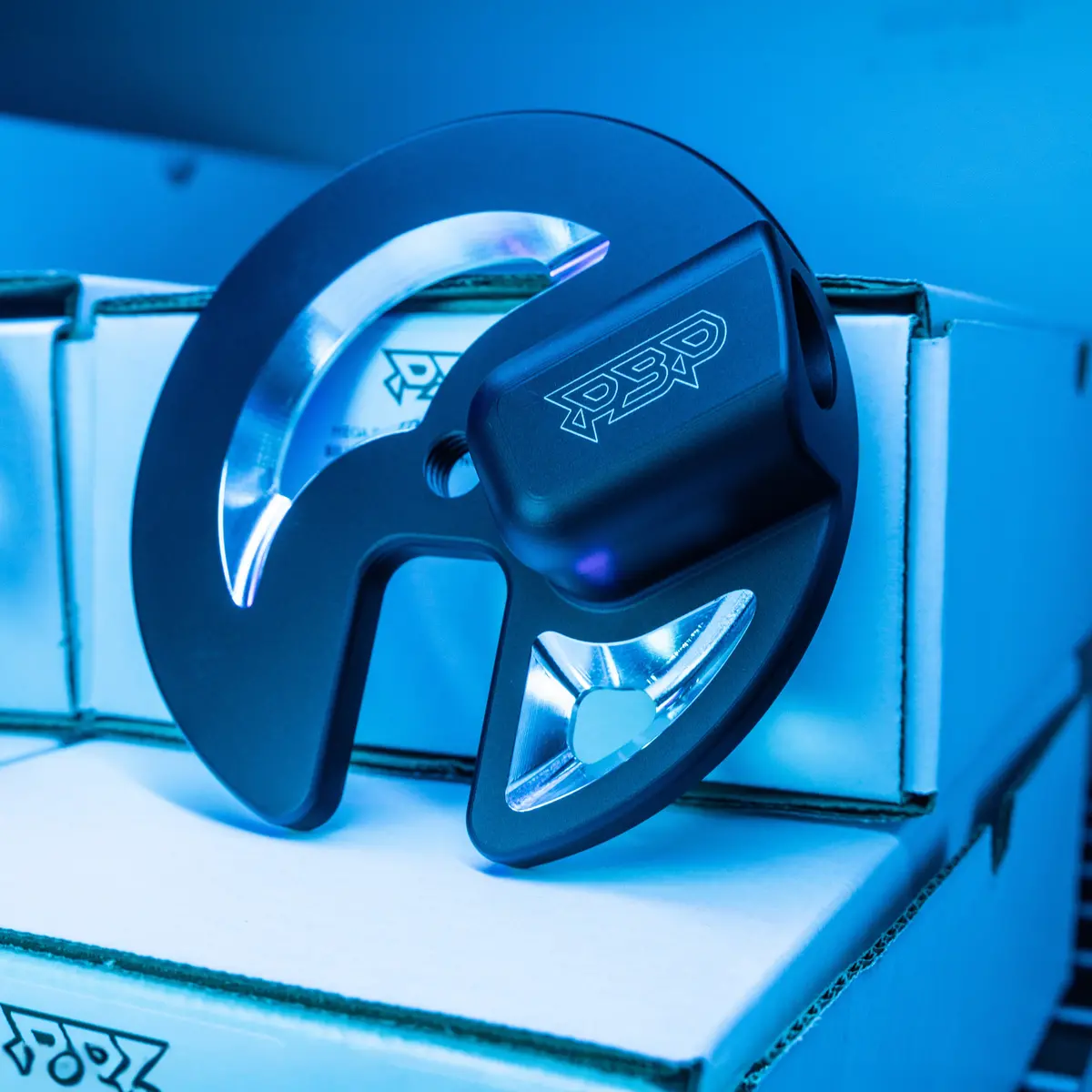

STREET SERIES FEATURES SEALED TOP PLATE AND SEDIMENT BOWL 1200HP

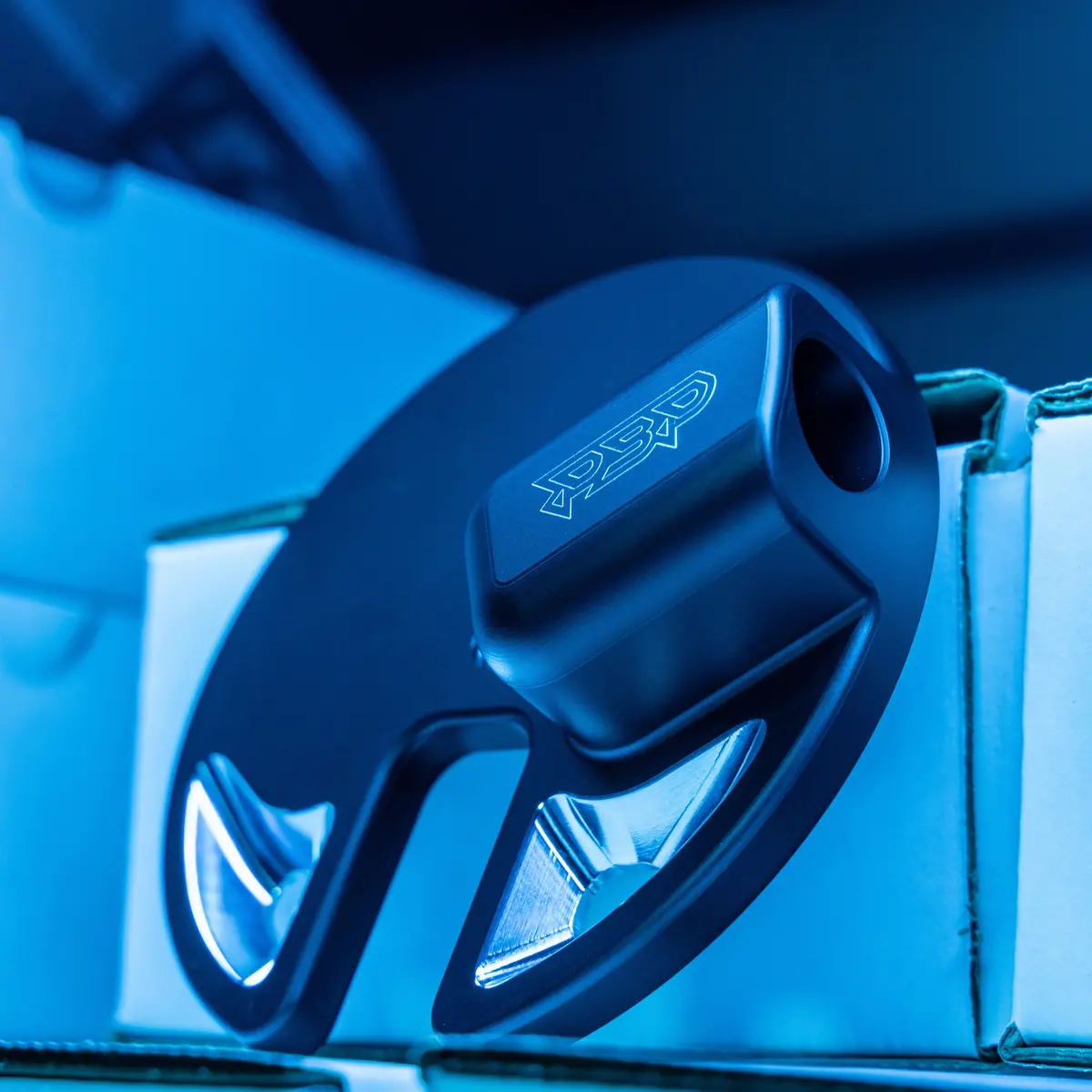

RACE SERIES FEATURES PORTED POCKETS 1200HP++

“BUILD TO ORDER” COMP SERIES FEATURES PORTED BOWL AND TOP PLATE

-10 AN FEED AND RETURN PORTS

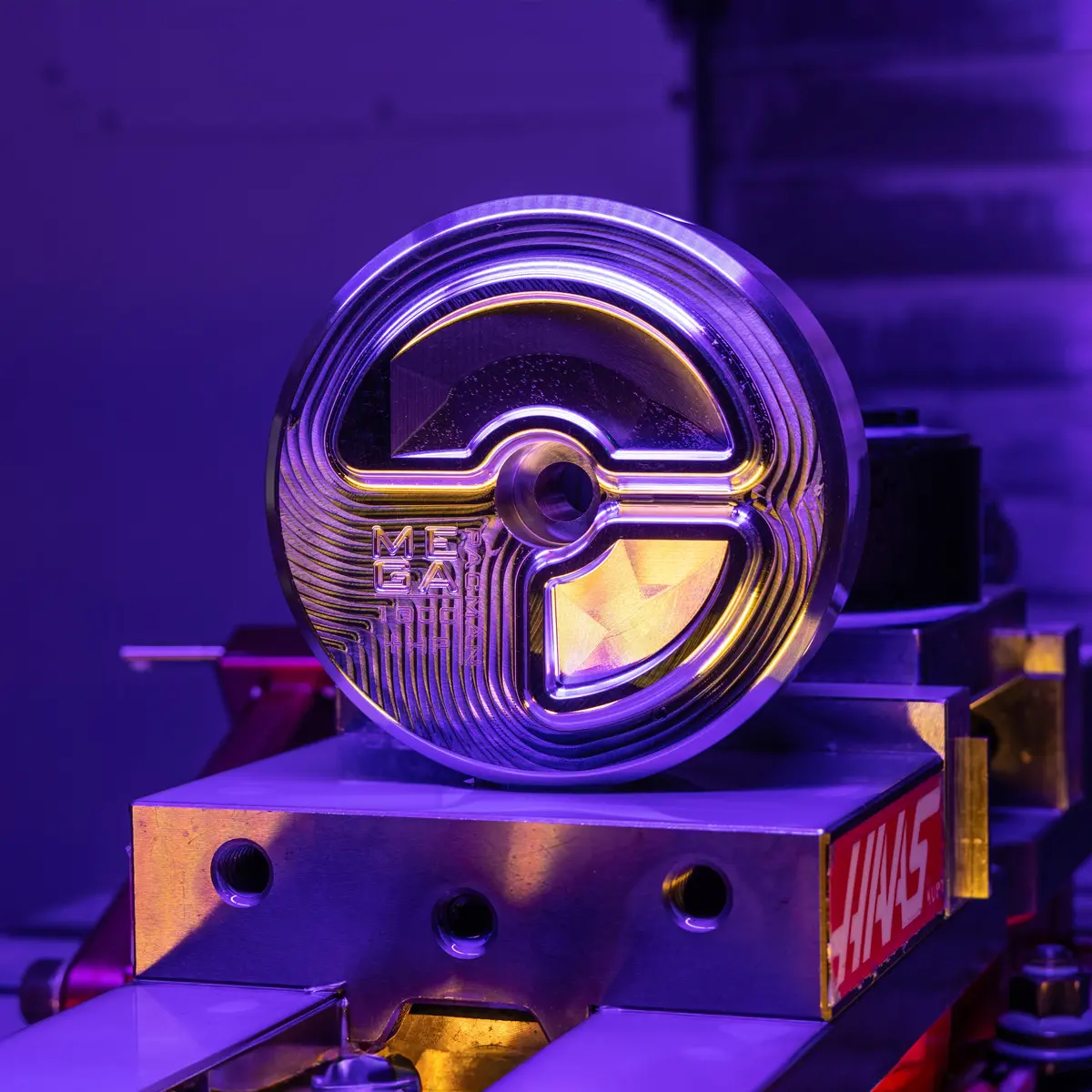

WHY A SUMP? 1 Hole, 2 Orings and 1 Bolt That’s Why! Our MEGA PACMAN Fuel Sump is Proven 1,200RWHP on a Fass Fuel System Feeding Dual CP3s! Its job is simple, allow gravity to force feed fuel into the fuel bowl. Once filled, fresh fuel is ramped to the -10 Port and is ready to fill your Fass or Air Dog ride!  Please choose appropriate fittings when ordering. Our Sumps are made from 6061 Billet Aluminum. Made in house where we can offer Industry leading machining designs and quality control! Mega series has been tested since January of 2024 on our 1200HP shop vehicle.

TAG US IN YOUR BUILD @POINTBLANKPERFORMANCE

Each Sump contains:1 Billet Sump1 Billet Top Plate1 Large O-Ring1 1/2″-13 x 2″ SS SOCKET CAP SCREW 1 1/2″ FASTENER SEAL WASHER1 O-RING FOR RETURN PORT

Please note you will need a “3 7/8” Hole Saw to install this product

NOTE: NORMAL FASS AND AIRDOG KITS COME WITH 1/2″ HOSE. TO MAKE THIS SUMP WORK WITH 1/2″ HOSE PLEASE CHOOSE APPROPRIATE FITTINGS BELOW.

INSTALL VIDEO ATTACHED IN PHOTOS

FITTINGS REQUIRED:

(FOR 5/8″ HOSE): HP RATING 1100HP PLUS

• (2) -10AN FLARE X -10AN STRAIGHT CUT W/ O-RING
• (2) -10AN PUSH ON STRAIGHT SWIVEL HOSE END

(FOR 1/2″ HOSE): HP RATING STOCK TO 1100HP

• (2) -8AN FLARE X -10AN STRAIGHT CUT W/ORING
• (2) -8AN PUSH ON STRAIGHT SWIVEL HOSE END
