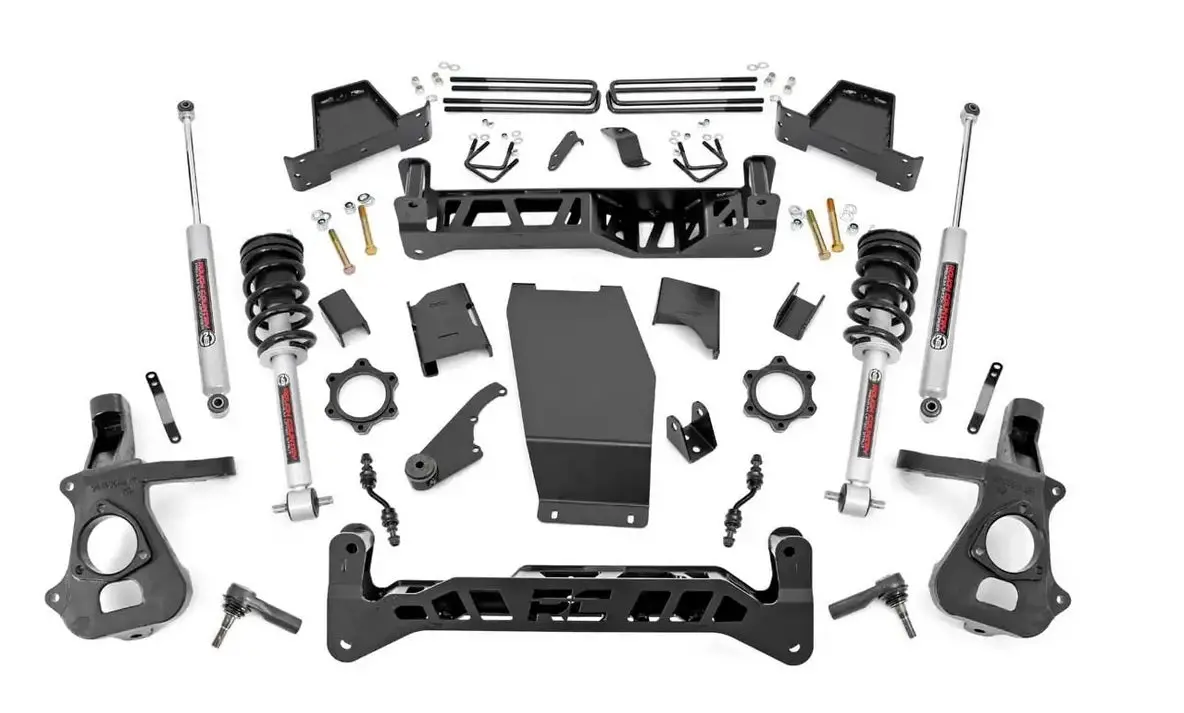

Rough Country 22833 Suspension Lift System

Description

Lift/Drop Height: 7 in.

Front Kit Componenets: Lifted knuckles, N3 Loaded Struts, Front crossmember, Rear crossmember, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware

Install Time: 8-10 hours

Rear Kit Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware

Tire & Wheel Size Combinations: 315/55 R20 – 20×9, Offset: +12 to +18mm (Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels), 315/55 R20 – 20×9, Offset: +12 to +18mm (Models equipped with Factory 18-inch or larger wheels must run 18-inch or larger wheels if changing to aftermarket wheels)

Title: Rough Country 7 Inch Lift Kit – Cast Steel – N3 Struts – Chevy/GMC 1500 (14-18)

California Proposition 65: No

Front Kit Components: Lifted knuckles, N3 Loaded Struts, Front crossmember, Rear crossmember, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware

Front Components: Lifted knuckles, N3 Loaded Struts, Front crossmember, Rear crossmember, CV spacers, Differential drop brackets, Differential skid plate, Sway-bar drop brackets, Hardware

Rear Components: Fabricated lift blocks, Brake line brackets, U-bolts, Hardware

Tire, Wheel, and Offset Info: 35×12.50R20:Factory 20:6×5.5:-:0.25 Spacer; 295/70R18:Factory 18:6×5.5:-:0.25 Spacer; 35×12.50R18:18×8.5:6×5.5:+1:-; 35×12.50R18:18×9:6×5.5:-12:-; 35×12.50R18:18×9:6×5.5:+0:Trimming Required; 35×12.50R18:18×9:6×5.5:+1:-; 35×12.50R20:20×9:6×5.5:-12:-; 295/60R20:20×9:6×5.5:-12:Minor Trimming; 35×12.50R20:20×9:6×5.5:+0:-; 295/60R20:20×9:6×5.5:+0:Minor Trimming; 35×12.50R20:20×9:6×5.5:+1:-; 295/60R20:20×9:6×5.5:+1:Minor Trimming; 35×12.50R20:20×10:6×5.5:-25:Trimming Required; 295/60R20:20×10:6×5.5:-25:Minor Trimming; 35×12.50R20:20×10:6×5.5:-24:Trimming Required; 295/60R20:20×10:6×5.5:-24:Minor Trimming; 35×12.50R20:20×10:6×5.5:-19:Trimming Required; 295/60R20:20×10:6×5.5:-19:Minor Trimming; 35×12.50R20:20×10:6×5.5:-18:Trimming Required; 295/60R20:20×10:6×5.5:-18:Minor Trimming; 35×12.50R22:22×10:6×5.5:-25:Trimming Required; 35×12.50R22:22×10:6×5.5:-24:Trimming Required; 35×12.50R22:22×10:6×5.5:-19:Trimming Required; 35×12.50R22:22×10:6×5.5:-18:Trimming Required



Kit components:

174 Box 1 Location: SI red Room

17430 Box 2 Location: E/O

1237 Box 5 Location: E/O

23158  Location: SI red Room

501060 Location: SI red Room
